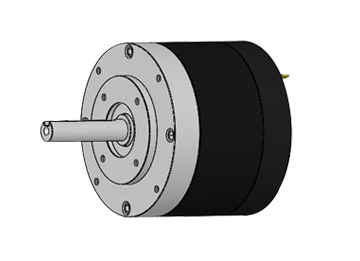

BLDC45C-series

BLDC45C-series Performance

Please slide the table to check.

Item 30W 40W 50W 60W 70W 80W 100W
No Load RPM 2500 2650 2550 2800 2950 3000 3350
Amps 0.40 0.40 0.40 0.40 0.40 0.40 0.40
Load RPM 2100 2250 2300 2350 2450 2450 2650
Amps 1.80 2.70 2.85 3.40 4.00 4.40 5.60
N.m 0.140 0.190 0.230 0.240 0.275 0.310 0.360

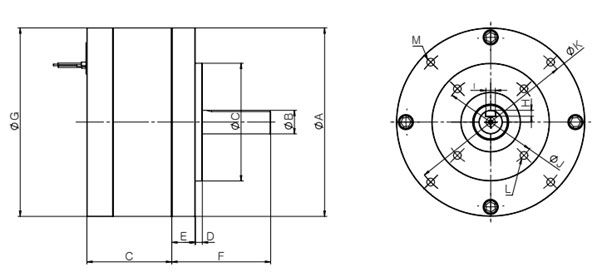

BLDC45C-series Dimension

Please slide the table to check.

ØA-0.010/-0.029 ØB-0/-0.015 C D E F ØG
80 8 36 3 10 42 79.9
H+0.1/0 I+0.060/+0.020 J K L M
1.8 3 P.C.D Ø40 P.C.D Ø72 4-M4 4-M4

Output Shaft Ø10 – if selected

Output Shaft Ø10 : Keyway Width ( I ) : 4(+0.060/+0.020), Keyway Height ( H ) : 2.5(+0.1/0)
