Ferrite Rubber Magnet
Ferrite Rubber Magnet

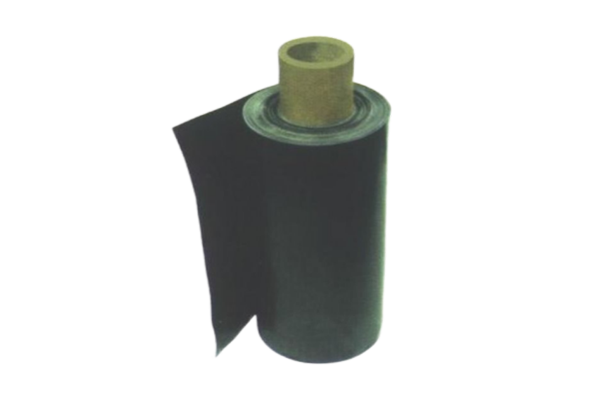

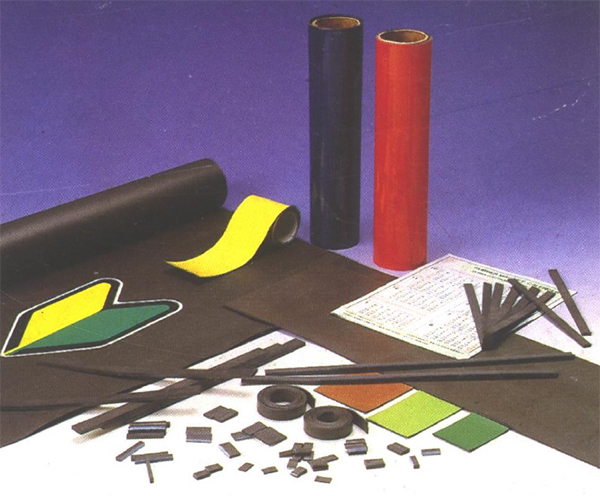

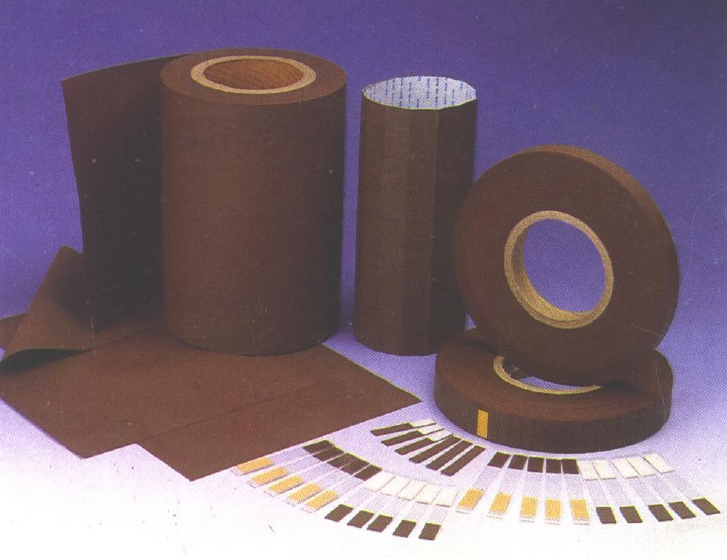

Flexible Magnetic Sheeting
Magnetic Properties of Flexible Magnetic sheeting
Please slide the table to check.
| Code | Br | bHc | iHc | (BH)max | Forming way | SIZE | ||
|---|---|---|---|---|---|---|---|---|
| T | kA/m | KA/m | KJ/m³ | MAX Length (m) |
Max With (mm) |
Heigth (mm) |
||
| BMZY-1 | 0.13 ~ 0.18 | 80 ~ 120 | 100 ~ 160 | 4 ~ 6.4 | Calendering | 100 | 400 | 0.4 ~ 1.1 |
| BMZY-2 | 0.18 ~ 0.22 | 100 ~ 140 | 120 ~ 190 | 6.4 ~ 8.0 | Calendering | 2 | 930 | 0.6 ~ 3 |
| BMZY-3 | 0.21 ~ 0.239 | 140 ~ 165 | 150 ~ 210 | 8.0 ~ 10.4 | Calendering | 100 | 400 | 0.4 ~ 1.5 |
| BMZY-4 | 0.24 ~ 0.265 | 156 ~ 181 | 200 ~ 270 | 10.4 ~ 12.5 | Calendering | 2 | 400 | 0.6 ~ 6 |
Physical Properties of Flexible Magnetic sheeting
Please slide the table to check.
| Code | Tensile Strength(Mpa) |
Elongation Rate(%) | Hardness(SHA) | Temperature(℃) | Density(g / cm³) |
|---|---|---|---|---|---|
| BMZY-1 | 7 ~ 12 | 100 ~ 200 | 85 ~ 98 | -10 ~ 80 | 3.6 ~ 3.7 |
| BMZY-2 | 7 ~ 12 | 100 ~ 300 | 85 ~ 98 | -10 ~ 80 | 3.6 ~ 3.7 |
| BMZY-3 | 7 ~ 12 | 100 ~ 200 | 85 ~ 98 | -10 ~ 60 | 3.6 ~ 3.7 |
| BMZY-4 | 7 ~ 12 | 100 ~ 300 | 85 ~ 98 | -10 ~ 80 | 3.6 ~ 3.7 |

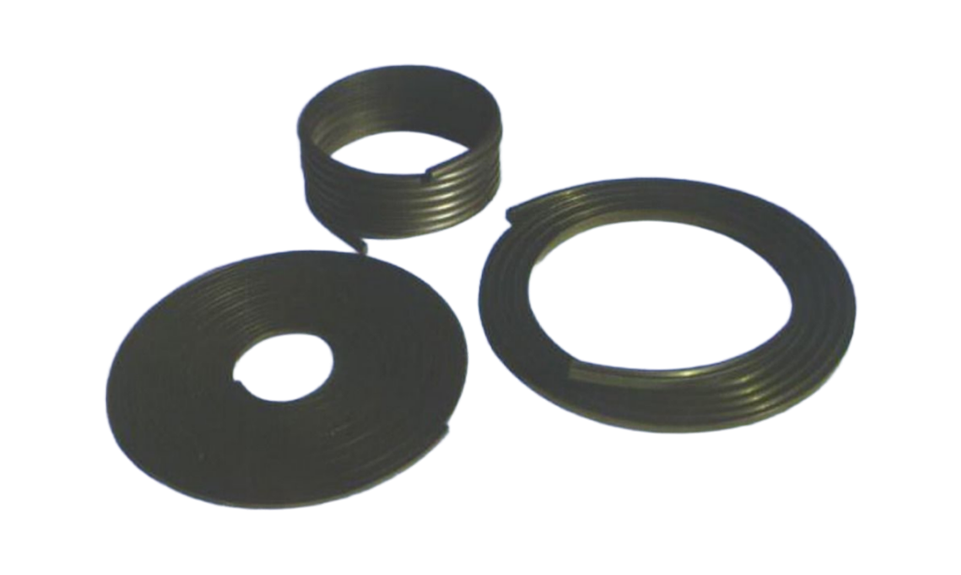

Flexible Magnetic Extrusions
Magnetic Properties of Flexible Magnetic sheeting
Please slide the table to check.
| Code | Br | bHc | iHc | (BH)max | Forming way | SIZE | ||
|---|---|---|---|---|---|---|---|---|
| T | kA/m | KA/m | KJ/m³ | MAX Length (m) |
Max With (mm) |
Heigth (mm) |
||
| BMZJ-1 | 0.13 ~ 0.18 | 80 ~ 115 | 100 ~ 160 | 3.2 ~ 6.4 | Extrusion | 100 | 40 | 1 ~ 6 |
| BMZJ-2 | 0.21 ~ 0.235 | 140 ~ 156 | 200 ~ 220 | 9.5 ~ 10.4 | Extrusion | 100 | 40 | 1 ~ 8 |
Physical Properties of Flexible Magnetic sheeting
Please slide the table to check.
| Code | Tensile Strength(Mpa) |
Elongation Rate(%) | Hardness(SHA) | Temperature(℃) | Density(g / cm³) |
|---|---|---|---|---|---|
| BMZJ-1 | 5 ~ 10 | 30 ~ 100 | 85 ~ 98 | -10 ~ 80 | 3.6 ~ 3.7 |
| BMZJ-2 | 5 ~ 10 | 40 ~ 100 | 85 ~ 98 | -10 ~ 80 | 3.6 ~ 3.7 |
